Setting up a New Instrument

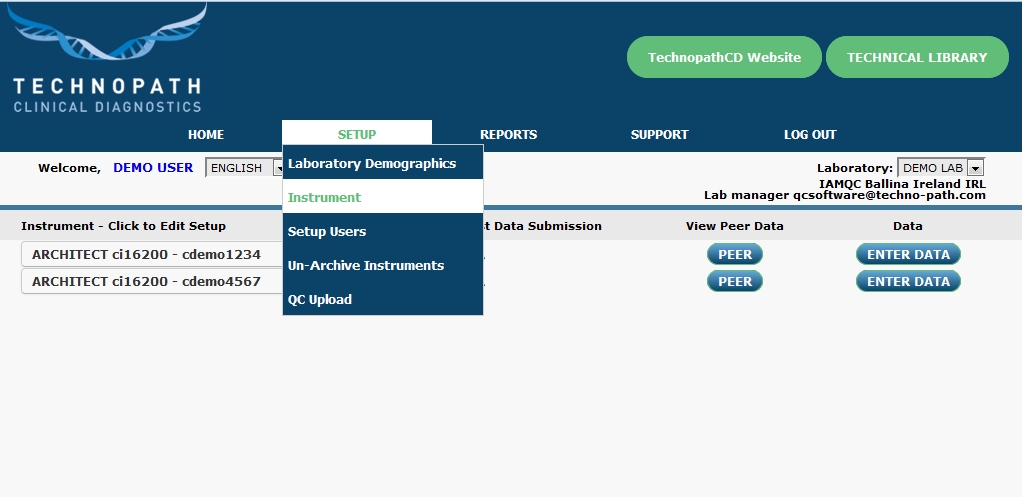

Step 1

NOTE, New ARCHITECT instruments are automatically configured by our system from your Released QC files.
Manually adding Instruments should not be necessary for Abbott users

From the HOME page, click SETUP and select INSTRUMENTS from the drop-down menu displayed.

Step 1

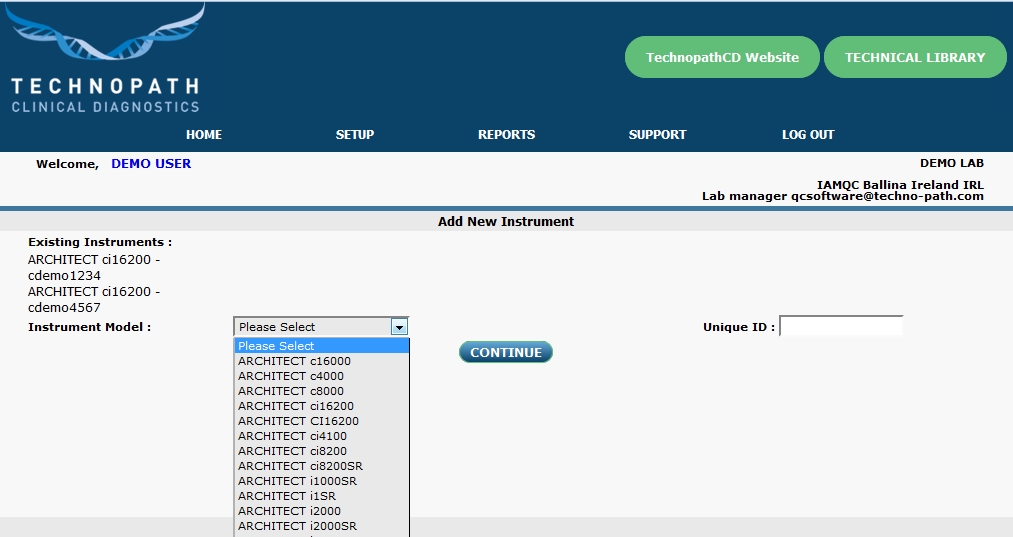

Step 2

Select an instrument model from the dropdown menu and enter the serial number of the instrument (or any unique identifier) and click CONTINUE.

Step 2

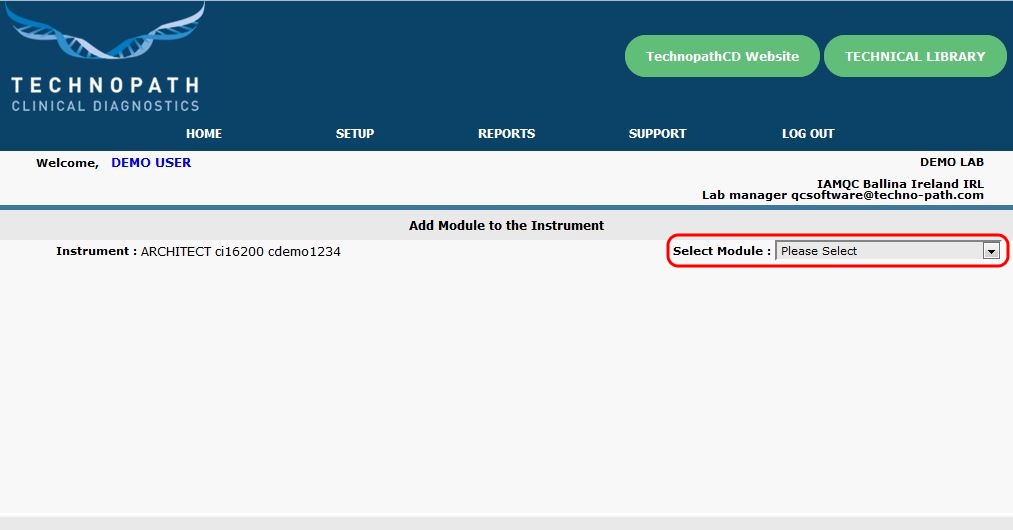

Step 3

Select a module (MULTICHEM product) to associate to your instrument from the dropdown menu.
The system will now display all of the available lot numbers for this product/instrument association.

Step 3

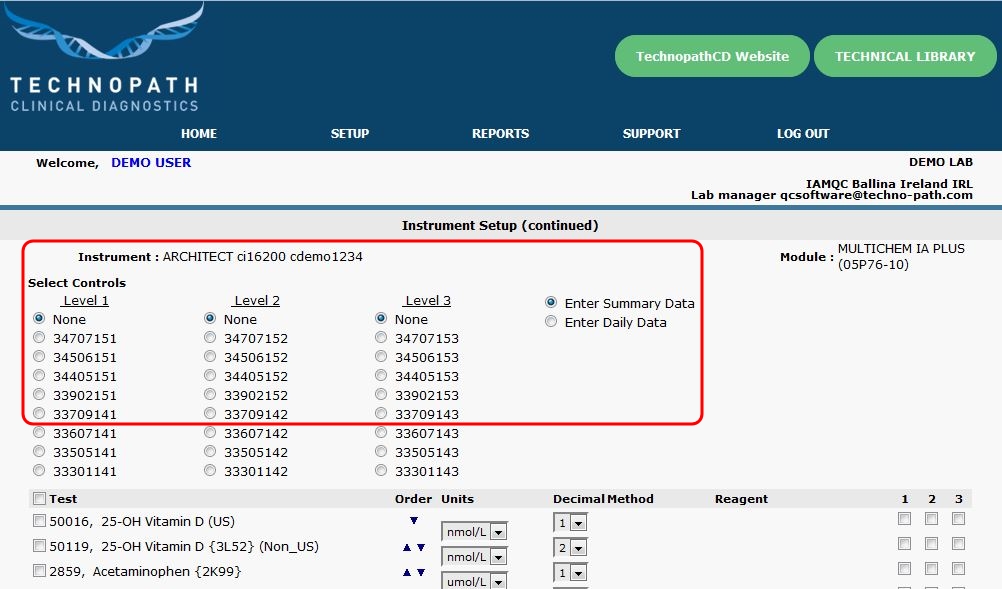

Step 4

Select your lot number by clicking on the button next to it and choose your submission criteria.
i.e Daily/Summary submission.

Step 4

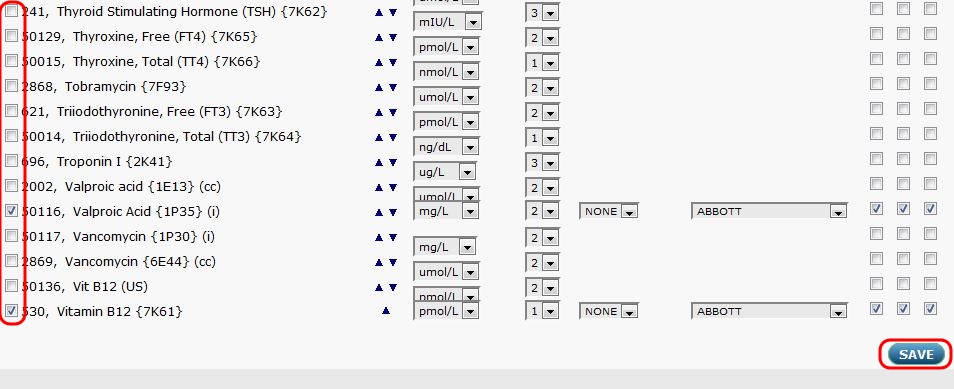

Step 5

Check mark each relevant test for data submission. Set the UoM, decimal precision and Reagent as appropriate.
When finished click SAVE.

Next Tutorial - Setup Users

Step 5
